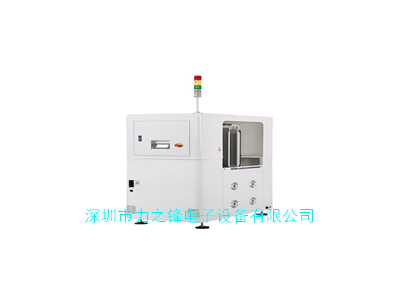

Purpose: used for buffering between SMT machines

1) Overall dimension: L600 * W1240 * H1800mm

2) Special sheet metal frame

3) Special multi-layer conveyor belt aluminum alloy turnover box

4) The 120W motor drives the Magazine to step up and down

5 Lei Sai stepping drive motor

6) Precision ball screw

7) The maximum PCB size is (L) 480mm * (W) 50-460

8) Feeding direction: left to right/right to left

9) PCB transfer height: 920± 30mm，

10) Multi layer conveyor belt pitch selection is 25, 50

11) Multilayer W3.5 flat belt transmission

12) The maximum number of storage plates is 20

13) Xinjie PLC programmable controller control, with automatic alarm function

14) It has the function of buffering and storing PCB boards and first in first out;

15) The operation control panel is a display control touch screen

16) Power supply: 220V 50HZ

17) One set of electric box
